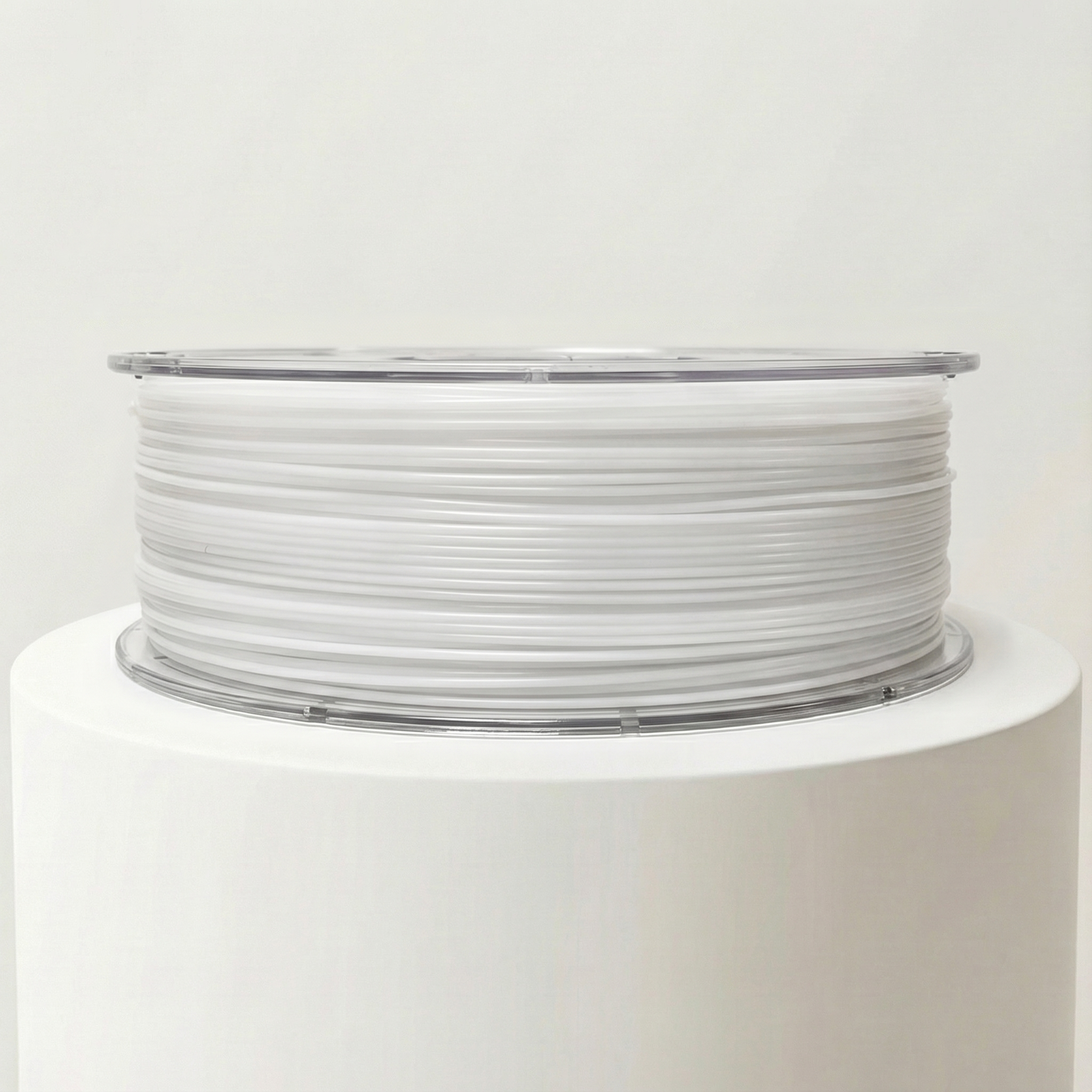

Name: yxpolyer Breakaway-80 1.75mm 1kg
Brand: yxpolyer
SKU: SLV-BRK-80-1K
Price: 5390 ISK
Availability: InStock

yxpolyer Breakaway-80 1.75mm 1kg

5,390 kr

yxpolyer Breakaway-80 1.75mm 1kg

5,390 kr

Breakaway-80 is a dedicated support interface material designed to detach cleanly from the primary print material by simple manual force - no solvents or soaking required. Unlike PVA or HIPS soluble supports you simply flex or snap the support structure away after the print has cooled. Originally marketed for advanced engineering filaments it also works reliably as a breakaway support on PLA and PETG - just set the print temperature accordingly (minimum: 220°C).

📊 Technical Specifications

Nozzle Temperature	220-260 °C
Bed Temperature	100-110 °C
Print Speed	30-120 mm/s *
Part Cooling Fan	100 % *
Max Volumetric Speed	24 mm³/s *
Drying Temperature	45 °C *
Drying Time	4 hours *
Enclosure Required	Yes *
Tensile Strength (Yield, XY)	34 MPa
Tensile Strength (Yield, Z)	15.3 MPa *
Tensile Strength (Break, XY)	34 MPa
Tensile Strength (Break, Z)	15.3 MPa *
Tensile Modulus (XY)	3500 MPa *
Tensile Modulus (Z)	2100 MPa *
Elongation at Break	2.3 %
Flexural Strength (XY)	52 MPa
Flexural Strength (Z)	28.6 MPa *
Flexural Modulus (XY)	2225 MPa
Flexural Modulus (Z)	1446.2 MPa *
Impact Strength (Izod)	18 J/m *
Impact Strength (Unnotched, XY)	64 kJ/m² *
Impact Strength (Unnotched, Z)	25.6 kJ/m² *
Heat Deflection (0.45 MPa)	60 °C *
Heat Deflection (1.8 MPa)	95 °C
Glass Transition (Tg)	62 °C *
Melting Point	200-240 °C
Density	1.0 g/cm³
Hardness (Shore A)	57.6 *
Hardness (Shore D)	48.2 *
Hardness (Rockwell R)	106 *
Continuous Service Temp	50 °C *
Light Transmittance	5 % *
Dielectric Strength	15 kV/mm *
Impact Strength (Charpy)	16 kJ/m² *
Elongation at Yield	4 % *
Mold Shrinkage	0-0 % *
Water Absorption (24h)	0.3 % *
Flammability Rating	HB *
Bed Adhesion	PEI *

* Estimated values based on material family characteristics

📋 Documentation

📄 Technical Data Sheet
