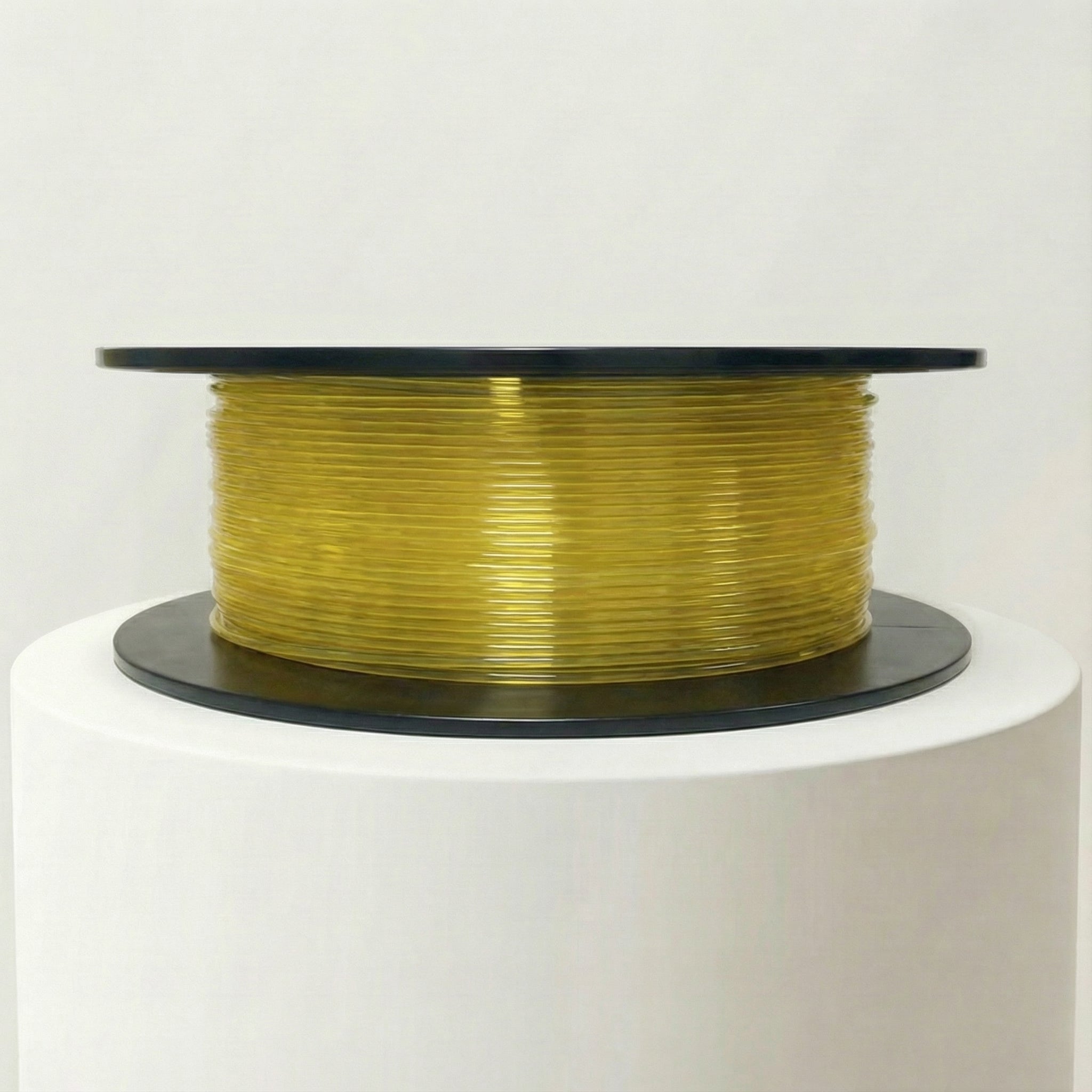

Yasin PVA Transparent 1.75mm 500g

Yasin PVA Transparent 1.75mm 500g

4.180 kr
Skip to product information
Yasin PVA Transparent 1.75mm 500g
  • Yasin PVA Transparent 1.75mm 500g
  • Yasin PVA Transparent 1.75mm 500g
Yasin PVA Transparent 1.75mm 500g

Yasin PVA Transparent 1.75mm 500g

4.180 kr

PVA (Polyvinyl Alcohol) is a water-soluble support material that dissolves completely in warm water. Ideal for complex geometries with intricate overhangs when printing with PLA or nylon; simply print the support then dissolve in water leaving no marks. Extremely hygroscopic - store in sealed containers with desiccant.

Note: For best print quality, we recommend drying before use.

📊 Technical Specifications

Nozzle Temperature 190-210 °C *
Bed Temperature 50-60 °C *
Print Speed 30-50 mm/s *
Part Cooling Fan 50 % *
Max Volumetric Speed 12 mm³/s *
Drying Temperature 45 °C *
Drying Time 8 hours *
Enclosure Required No *
Tensile Strength (Yield, XY) 107.9 MPa
Tensile Strength (Yield, Z) 13.7 MPa *
Tensile Strength (Break, XY) 107.9 MPa
Tensile Strength (Break, Z) 13.7 MPa *
Tensile Modulus (XY) 1863.3 MPa
Tensile Modulus (Z) 838.5 MPa *
Elongation at Break 11 %
Flexural Strength (XY) 166.7 MPa
Flexural Strength (Z) 50 MPa *
Flexural Modulus (XY) 2500 MPa *
Flexural Modulus (Z) 1250 MPa *
Impact Strength (Izod) 50.0 J/m *
Impact Strength (Unnotched, XY) 6 kJ/m² *
Impact Strength (Unnotched, Z) 1.2 kJ/m² *
Heat Deflection (0.45 MPa) 50 °C *
Heat Deflection (1.8 MPa) 45 °C *
Glass Transition (Tg) 55 °C
Melting Point 174 °C
Density 1.2 g/cm³
Hardness (Shore A) 70 *
Hardness (Shore D) 35 *
Hardness (Rockwell R) 75 *
Continuous Service Temp 50 °C *
Light Transmittance 0 % *
Dielectric Strength 18 kV/mm *
Impact Strength (Charpy) 1.5 kJ/m² *
Elongation at Yield 10 % *
Mold Shrinkage 0-1 % *
Water Absorption (24h) 5 % *
Flammability Rating HB *
Bed Adhesion PVA Glue *

* Estimated values based on material family characteristics
