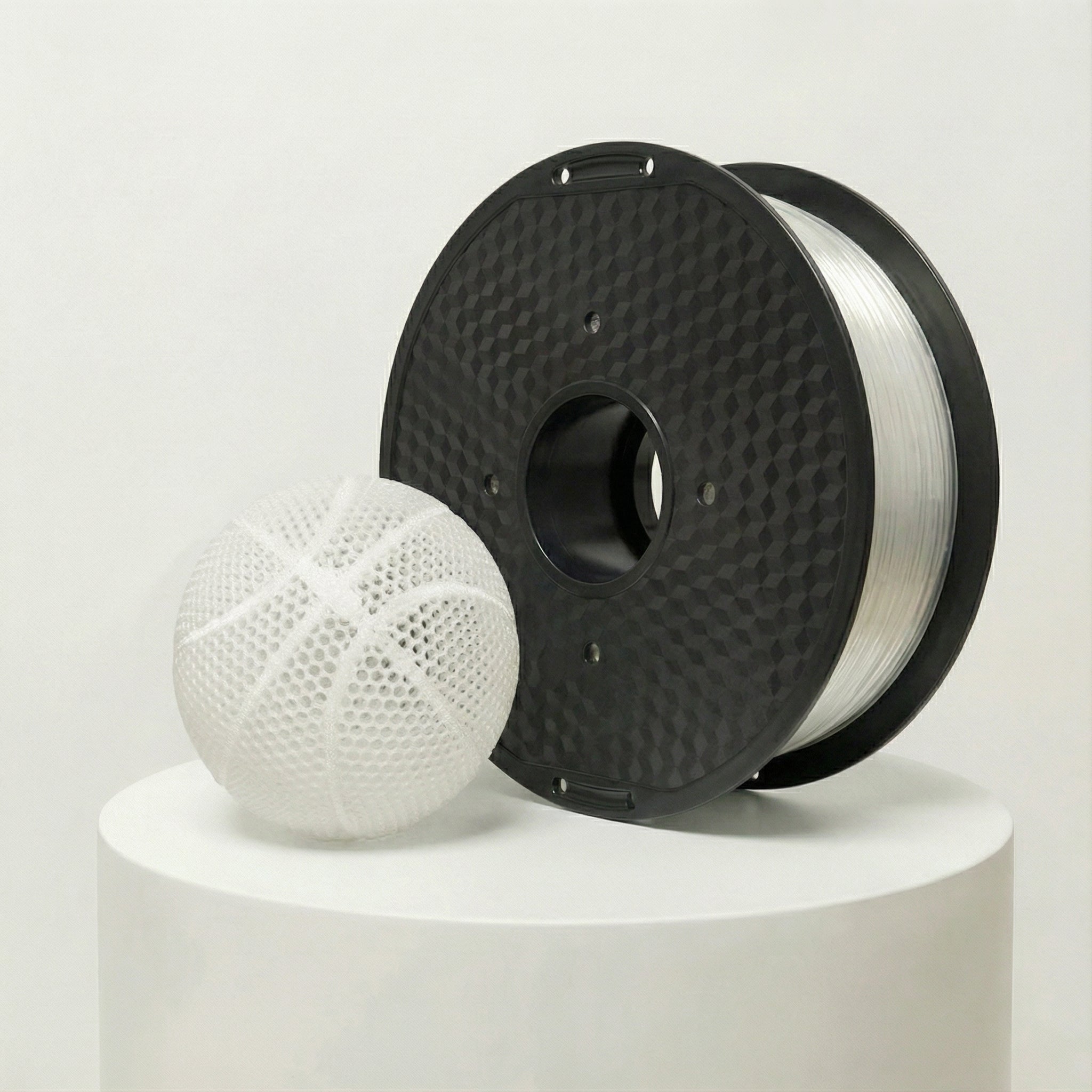

Name: Yasin PEBA Transparent 1.75mm 500g
Brand: Yasin
SKU: YSN-PEBA-TR-500G
Price: 3980 ISK
Availability: InStock

Yasin PEBA Transparent 1.75mm 500g

3,980 kr

Yasin PEBA Transparent 1.75mm 500g

3,980 kr

PEBA (Polyether Block Amide ~50D Shore hardness) is a flexible engineering elastomer with high energy return and lightweight properties. Originally developed for athletic footwear it offers exceptional rebound properties and flexibility even at low temperatures (-~60°C).

Note: For best print quality, we recommend drying before use.

📊 Technical Specifications

Nozzle Temperature	220-240 °C *
Bed Temperature	40-60 °C *
Print Speed	20-70 mm/s *
Part Cooling Fan	50-100 % *
Max Volumetric Speed	7.2 mm³/s *
Drying Temperature	60 °C *
Drying Time	5 hours *
Enclosure Required	No *
Tensile Strength (Yield, XY)	25 MPa *
Tensile Strength (Yield, Z)	11.2 MPa *
Tensile Strength (Break, XY)	45 MPa *
Tensile Strength (Break, Z)	20.2 MPa *
Tensile Modulus (XY)	350 MPa *
Tensile Modulus (Z)	210 MPa *
Elongation at Break	400 % *
Flexural Strength (XY)	18 MPa *
Flexural Strength (Z)	9.9 MPa *
Flexural Modulus (XY)	350 MPa *
Flexural Modulus (Z)	227.5 MPa *
Impact Strength (Izod)	200 J/m *
Impact Strength (Unnotched, XY)	8 kJ/m² *
Impact Strength (Unnotched, Z)	3.2 kJ/m² *
Heat Deflection (0.45 MPa)	60 °C *
Heat Deflection (1.8 MPa)	45 °C *
Glass Transition (Tg)	-60 °C *
Melting Point	160 °C *
Density	1.0 g/cm³ *
Hardness (Shore D)	50 *
Continuous Service Temp	60 °C *
Light Transmittance	0 % *
Dielectric Strength	20 kV/mm *
Impact Strength (Charpy)	2 kJ/m² *
Elongation at Yield	10 % *
Mold Shrinkage	1-1 % *
Water Absorption (24h)	1.2 % *
Flammability Rating	HB *
Bed Adhesion	PEI *

* Estimated values based on material family characteristics
