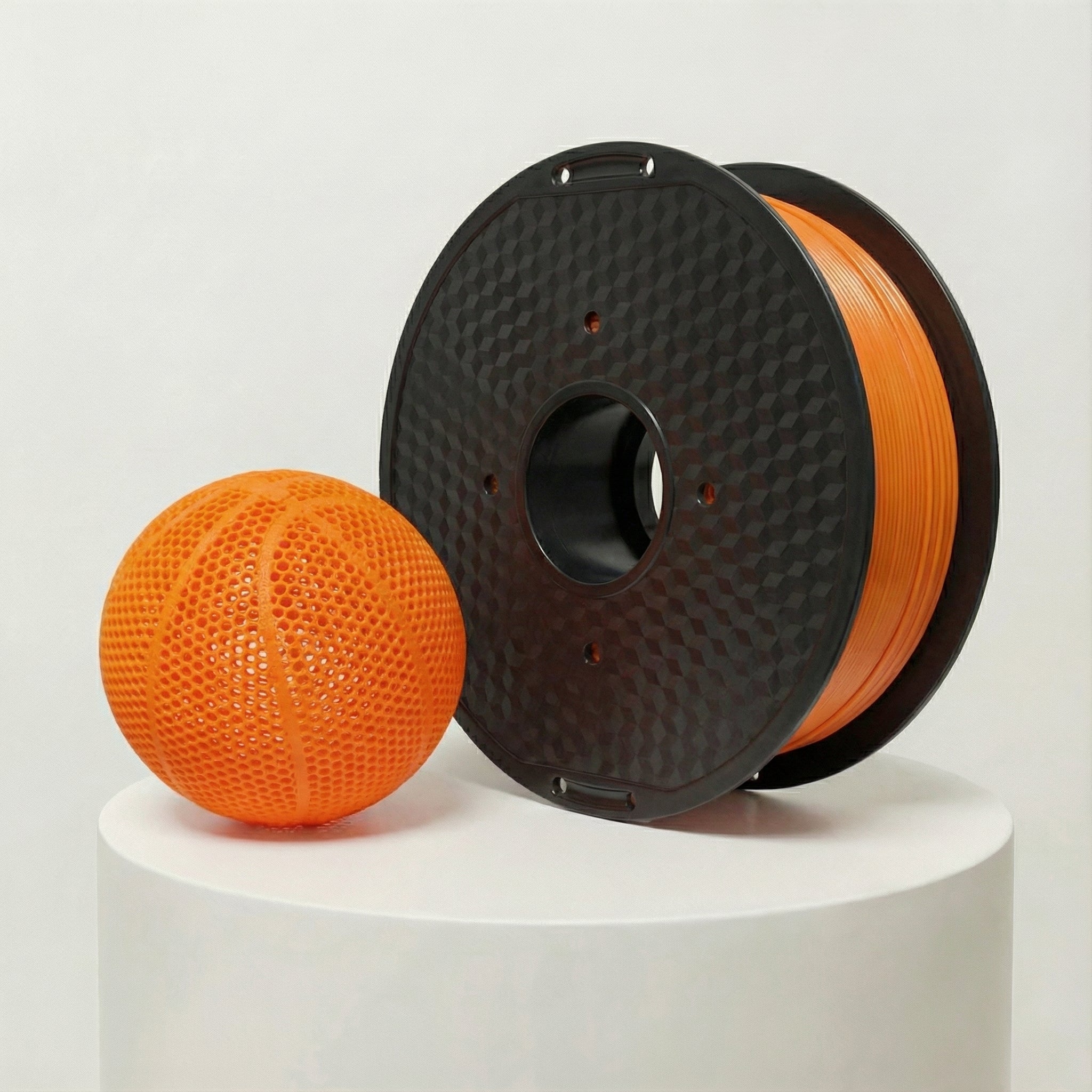

Yasin PEBA Dark Orange 1.75mm 500g
  • Yasin PEBA Dark Orange 1.75mm 500g
  • Yasin PEBA Dark Orange 1.75mm 500g
Yasin PEBA Dark Orange 1.75mm 500g

Yasin PEBA Dark Orange 1.75mm 500g

3.770 kr

PEBA (Polyether Block Amide ~50A Shore hardness) is an ultra-flexible engineering elastomer with high energy return and lightweight properties. Originally developed for athletic footwear it offers exceptional rebound properties and flexibility even at low temperatures (-60°C). Requires direct drive and very slow print speeds.

Note: For best print quality, we recommend drying before use.

📊 Technical Specifications

Nozzle Temperature 220-240 °C *
Bed Temperature 40-60 °C *
Print Speed 20-40 mm/s *
Part Cooling Fan 50-100 % *
Max Volumetric Speed 8 mm³/s *
Drying Temperature 60 °C *
Drying Time 6 hours *
Enclosure Required No *
Tensile Strength (Yield) 25 MPa *
Tensile Strength (Break) 45 MPa *
Tensile Modulus 350 MPa *
Elongation at Break 400 % *
Flexural Strength 18 MPa *
Flexural Modulus 350 MPa *
Heat Deflection (0.45 MPa) 60 °C *
Heat Deflection (1.8 MPa) 45 °C *
Glass Transition (Tg) -60 °C *
Melting Point 160 °C *
Density 1.0 g/cm³ *
Hardness (Shore D) 50 *
Water Absorption (24h) 1.2 % *
Bed Adhesion PEI *

* Estimated values based on material family characteristics
