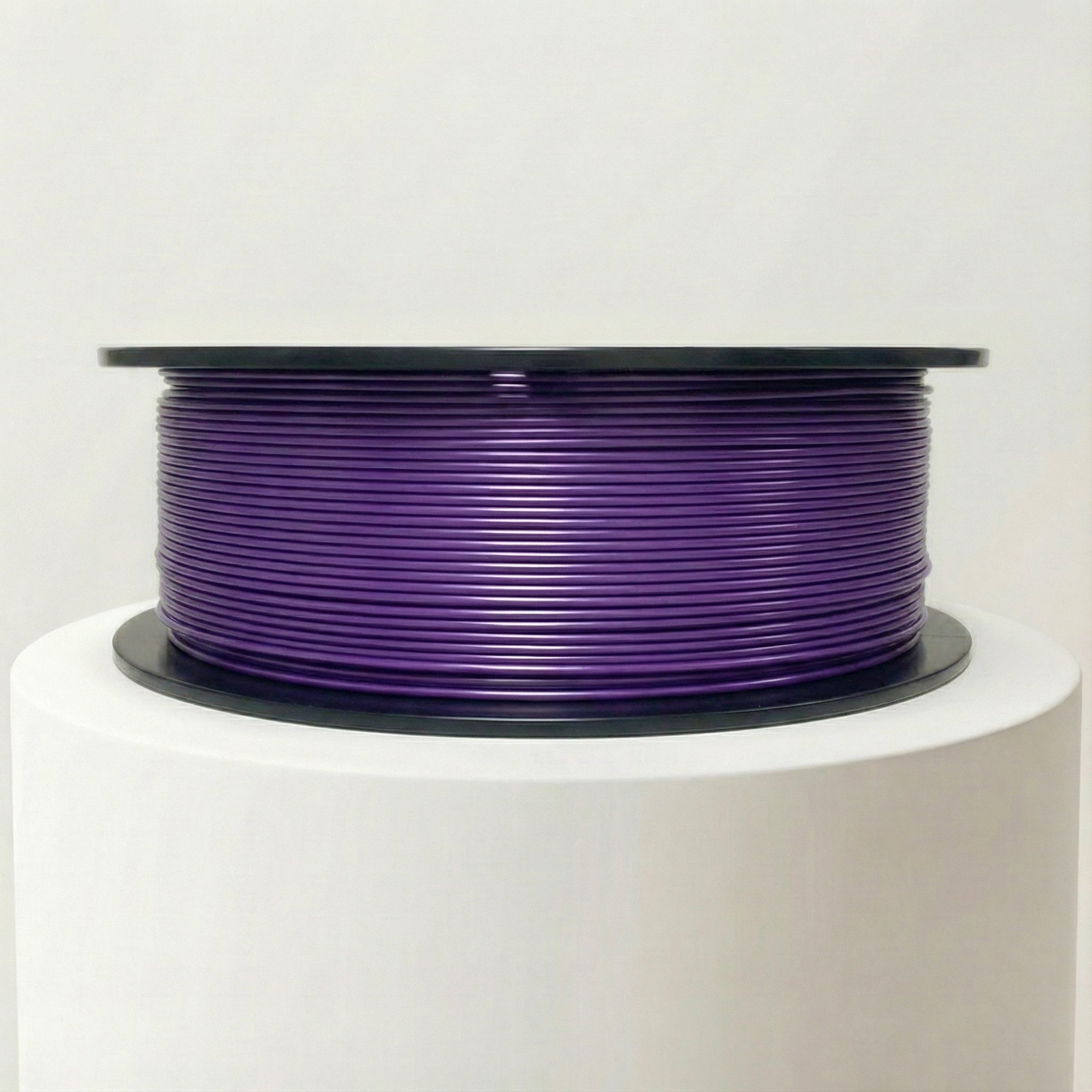

Yasin PCTG Purple 1.75mm 1kg

Yasin PCTG Purple 1.75mm 1kg

4.180 kr
Skip to product information
Yasin PCTG Purple 1.75mm 1kg
  • Yasin PCTG Purple 1.75mm 1kg
  • Yasin PCTG Purple 1.75mm 1kg
Yasin PCTG Purple 1.75mm 1kg

Yasin PCTG Purple 1.75mm 1kg

4.180 kr

PCTG is an advanced copolyester offering superior performance compared to PETG with higher heat resistance (up to 100°C HDT) and better impact resistance. Maintains the easy printing and good layer adhesion of PETG while providing mechanical properties closer to polycarbonate. Excellent choice when PETG isn't quite strong enough.

Note: For best print quality, we recommend drying before use.

📊 Technical Specifications

Nozzle Temperature 250-270 °C *
Bed Temperature 80-100 °C *
Print Speed 40-60 mm/s *
Part Cooling Fan 20-50 % *
Max Volumetric Speed 16 mm³/s *
Drying Temperature 65 °C *
Drying Time 6 hours *
Enclosure Required No *
Tensile Strength (Yield) 51 MPa
Tensile Strength (Break) 44 MPa
Tensile Modulus 2180 MPa *
Elongation at Break 150 %
Flexural Strength 87 MPa
Flexural Modulus 2180 MPa
Heat Deflection (0.45 MPa) 100 °C
Heat Deflection (1.8 MPa) 85 °C *
Glass Transition (Tg) 105 °C *
Density 1.3 g/cm³
Water Absorption (24h) 0.1 % *
Flammability Rating V-2
Bed Adhesion PEI *

* Estimated values based on material family characteristics
