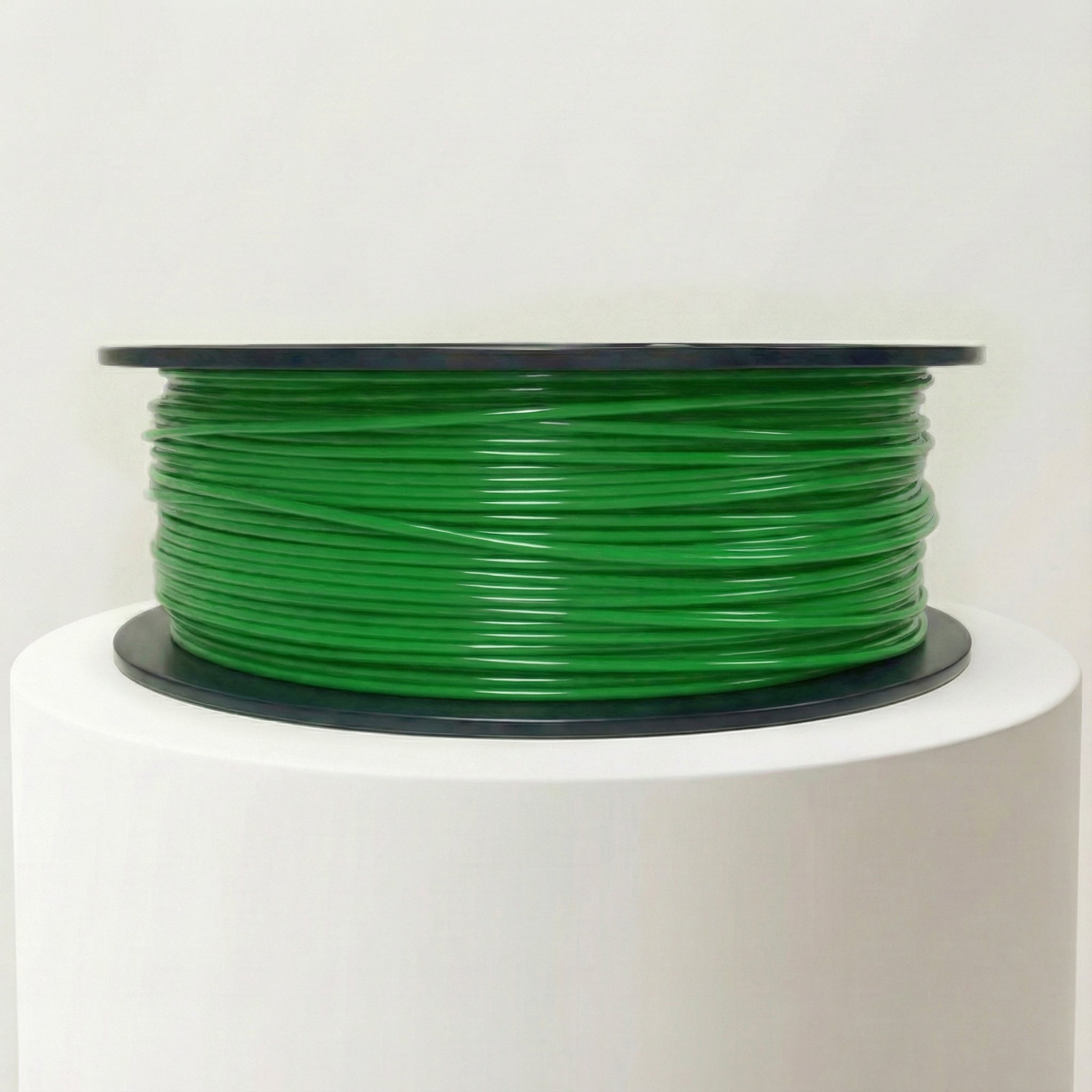

Yasin PCTG Green 1.75mm 1kg

Yasin PCTG Green 1.75mm 1kg

4.040 kr
Skip to product information
Yasin PCTG Green 1.75mm 1kg
  • Yasin PCTG Green 1.75mm 1kg
  • Yasin PCTG Green 1.75mm 1kg
Yasin PCTG Green 1.75mm 1kg

Yasin PCTG Green 1.75mm 1kg

4.040 kr

PCTG is an advanced copolyester offering superior performance compared to PETG with higher heat resistance (up to 100°C HDT) and better impact resistance. Maintains the easy printing and good layer adhesion of PETG while providing mechanical properties closer to polycarbonate. Excellent choice when PETG isn't quite strong enough.

Note: For best print quality, we recommend drying before use.

📊 Technical Specifications

Nozzle Temperature 250-270 °C *
Bed Temperature 80-100 °C *
Print Speed 40-60 mm/s *
Part Cooling Fan 20-50 % *
Max Volumetric Speed 14.4 mm³/s *
Drying Temperature 65 °C *
Drying Time 4 hours *
Enclosure Required No *
Tensile Strength (Yield, XY) 51 MPa *
Tensile Strength (Yield, Z) 22.9 MPa *
Tensile Strength (Break, XY) 44 MPa *
Tensile Strength (Break, Z) 19.8 MPa *
Tensile Modulus (XY) 2180 MPa *
Tensile Modulus (Z) 1308 MPa *
Elongation at Break 150 % *
Flexural Strength (XY) 87 MPa *
Flexural Strength (Z) 47.9 MPa *
Flexural Modulus (XY) 2180 MPa *
Flexural Modulus (Z) 1417 MPa *
Impact Strength (Izod) 90.0 J/m *
Impact Strength (Unnotched, XY) 32 kJ/m² *
Impact Strength (Unnotched, Z) 12.8 kJ/m² *
Heat Deflection (0.45 MPa) 100 °C *
Heat Deflection (1.8 MPa) 85 °C *
Glass Transition (Tg) 105 °C *
Melting Point 70-110 °C *
Density 1.3 g/cm³ *
Hardness (Shore A) 53.6 *
Hardness (Shore D) 52.7 *
Hardness (Rockwell R) 119 *
Continuous Service Temp 80 °C *
Light Transmittance 88 % *
Dielectric Strength 16 kV/mm *
Impact Strength (Charpy) 8 kJ/m² *
Elongation at Yield 6.8 % *
Mold Shrinkage 0-0 % *
Water Absorption (24h) 0.1 % *
Flammability Rating V-2 *
Bed Adhesion PEI *

* Estimated values based on material family characteristics
